Schematic drawing

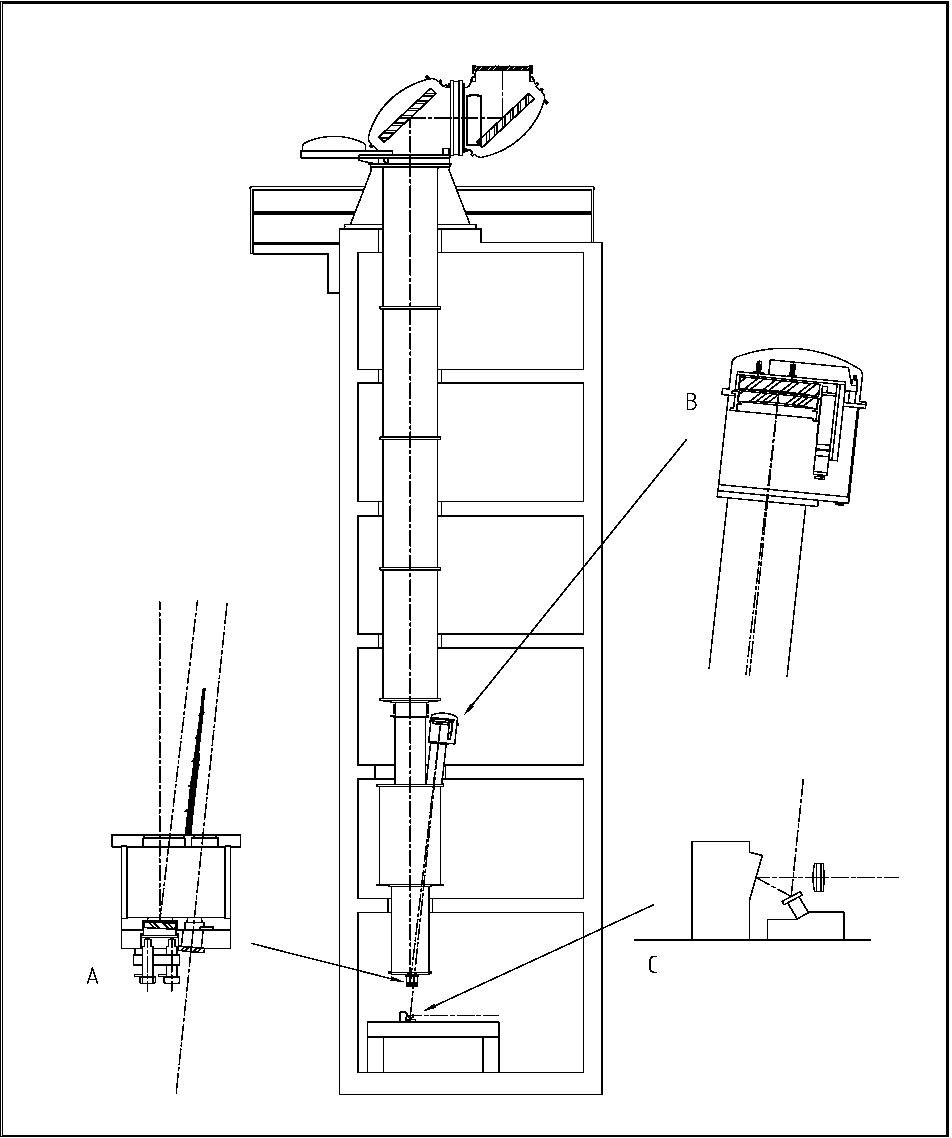

Schematic drawing of the tower with the turret and vacuum system.
  1. Details of the box holding the field mirror and field lens.
  2. The Schupman corrector with one lens and one mirror.
  3. The re-imaging optics, located on the optical table and consisting of a tip-tilt mirror, an adaptive mirror and a re-imaging lens.
